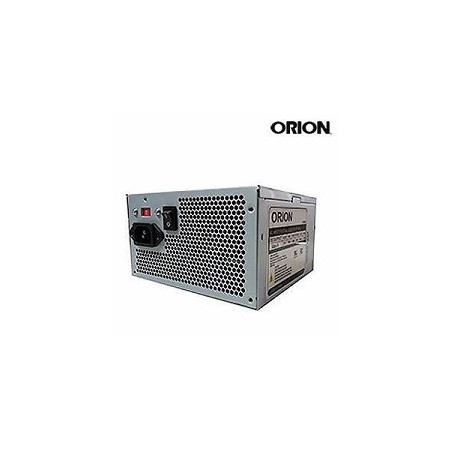

Orion 585W ATX Power Supply 20/24 Pins HP-585D Orion

Product Features:

20+4 Main Power Connector Supports Latest "Desktop Motherboards"

Retail box comes with 6 pin connector for PCI Express Cards

Super Quiet Technology: Smart Fan Control Function Keeps Noise Level

Under 22dBA

Excellent Protection Functions Provide Maximum Reliability: OVP (Over-

Voltage Protection), UVP (Under-Voltage Protection), OPP (Over-Power Protection), SCP (Short-Circuit Protection)

Over and under voltage protection

High Efficiency (>75%)

High Energy Power With Low Ripple Noise

100% Hi-Port, Chroma & Burn-in Function Tested

Temperature Range Operating 0°C~35°C, non-operating -40°C~70°C

Hold-up Time 16.6ms minimum at full load & normal input voltage

Humidity 5~95% RH

Power Good Signal On delay 100ms to 500ms, Off delay 1ms

Overload Protection 100~150% load

Over Voltage Protection +5V MAX 6.3V, +12V MAX 15.6V, +3.3V MAX 4.5V

In Rush Current 75A (PEAK) for 115Vac, 150A (PEAK) for 230Vac

Remote Sensing +3.3V

Cooling Fans 120 mm DC Fan
